Overview

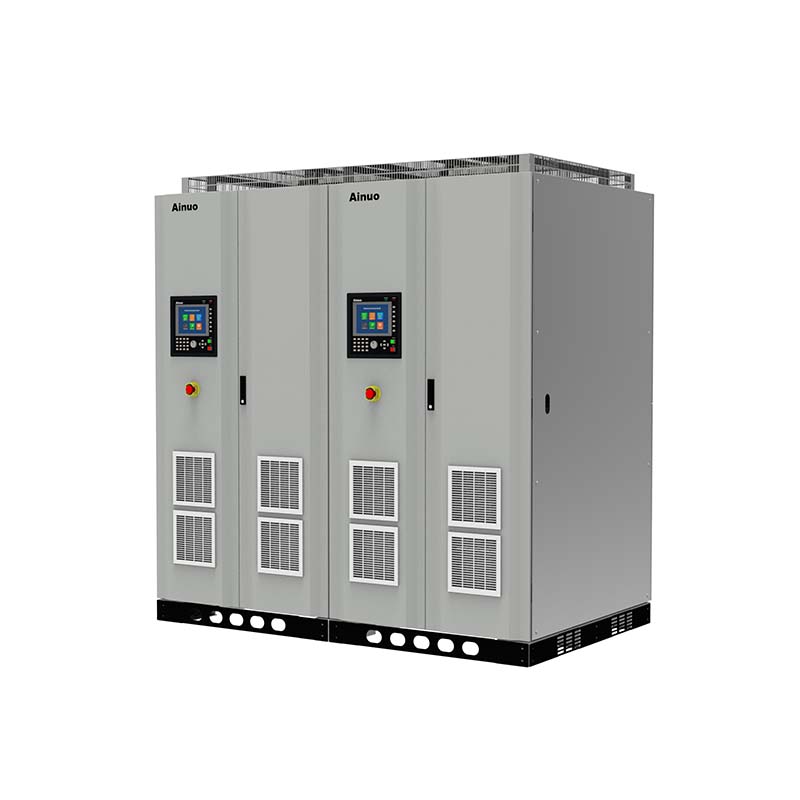

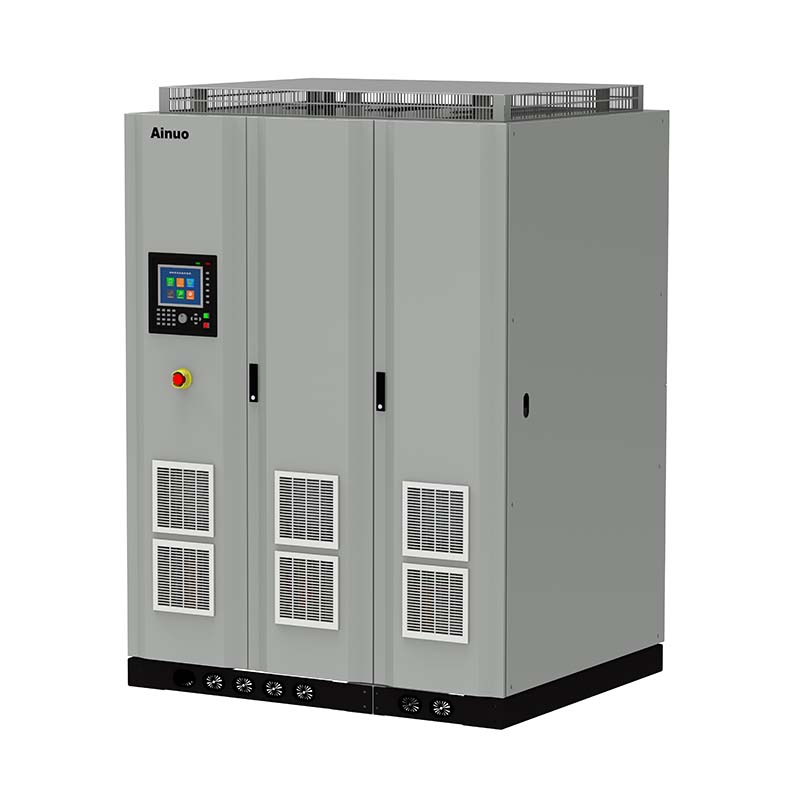

The ANEVS DA(F) Series Battery Simulator has both battery simulation and photovoltaic simulation functions. It can simulate the charging and discharging characteristics of power lithium batteries, meeting the test requirements of new energy vehicle motors, electric drive systems, whole vehicle systems, energy storage inverters, and other devices or systems. It can also simulate the characteristics of photovoltaic cell panels, meeting the test requirements of photovoltaic inverters and photovoltaic energy storage inverter integrated machines.

It adopts high-frequency PWM rectification technology, bidirectional DC conversion technology, and FPGA digital control technology. It features bidirectional energy flow, seamless switching between forward and reverse directions, and adaptive grid capabilities. It also has programmable protection parameter settings and output parameter limit settings, ensuring better safety for the device under test.

Features

It provides dual-channel outputs, with power freely allocated to each channel.

Each channel has independent control and protection functions that do not interfere with each other.

It is a multifunctional integrated machine for photovoltaic simulation, battery  simulation,and  bidirectional output.

It provides the source load integral mode with adjustable parameters.

It has high voltage, large current,and wide range output capabilities.

It features adaptive grid feedback function for full power continuous energy feedback.

It supports CV, CC, CP, CR working modes.

Voltage 0.05%FS and current 0.1%FS.

Response time≤3ms; forward and reverse switching time≤ 4ms.

Power factor≥0.99, current harmonic distortion≤3%.

It simulates 7 types of batteries such as lithium,nickel-hydrogen, lead-acid, etc.

It has 1st, 2nd, and 3rd order battery simulation functions, supporting import and export of data in mat and csv data formats.

It provides 900-step programming function with a minimum programming time of 1ms.

It features independent air duct heat dissipation design, supporting long-term continuous operation of the equipment.

It is equipped with standard CAN,RS232/RS485, LAN and other communication interfaces.

It offers a three-in-one operation mode of buttons, knobs, and touch operation.

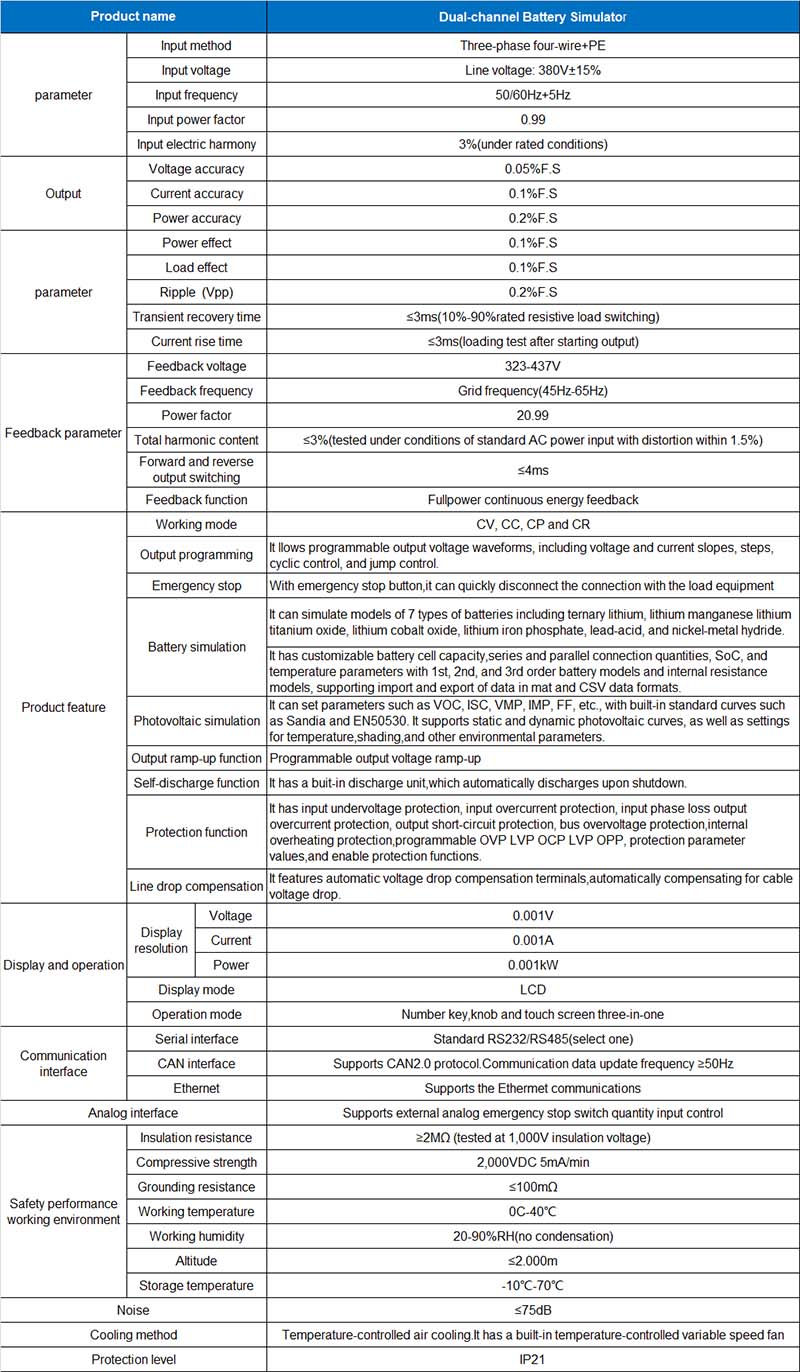

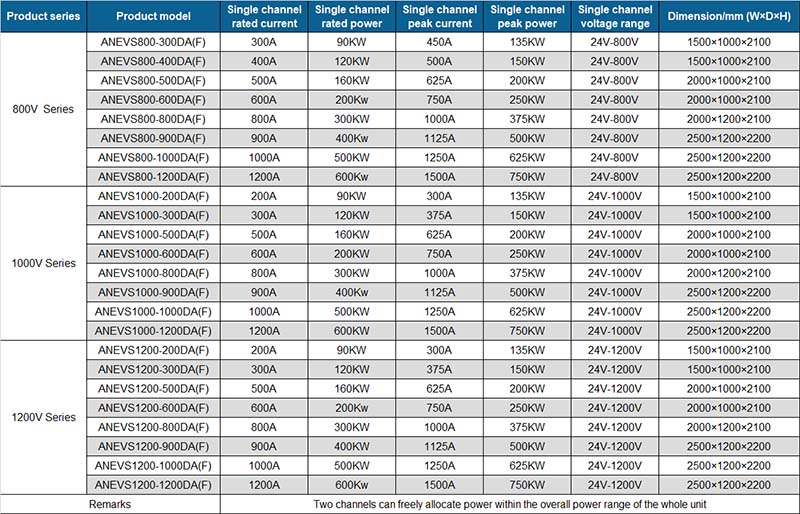

Specifications

Any changes to the above parameter specifications will not be notified separately
