Overview

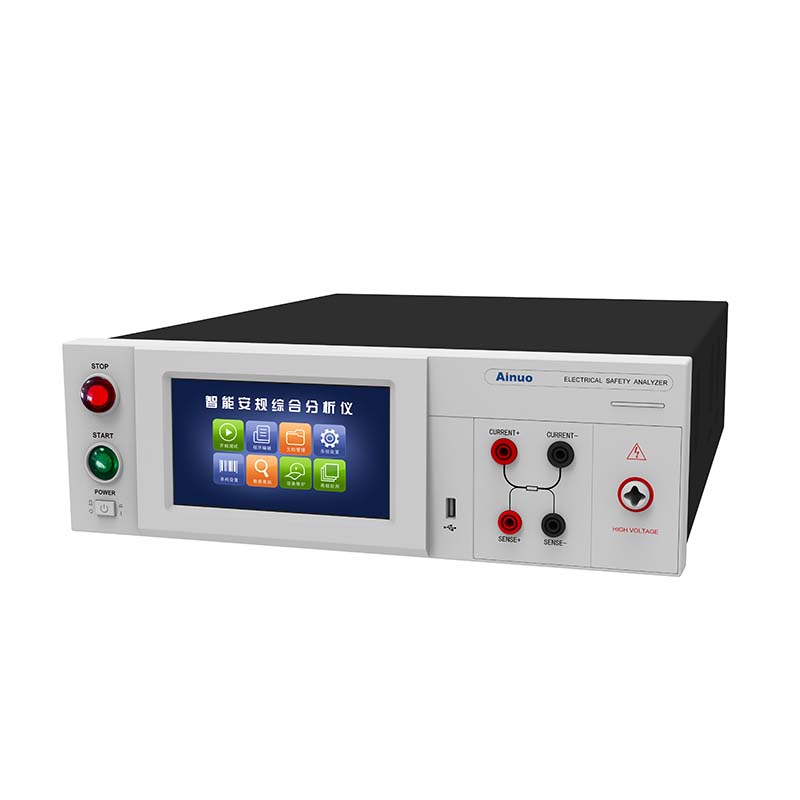

The ANBTS743×H(F) Lithium Battery Safety Regulation Comprehensive Analyzer from Ainuo Instrument Co.,Ltd. combines functions such as AC withstand voltage,DC withstand voltage, insulation resistance, AC ground bond, DC ground bond, as well as auxiliary functions including voltage ramp-up and ramp-down, arc detection, capacitance test (Y-capacitor,open and short circuit detection).

Addressing the unique product features and test requirements of power batteries and energy storage batteries. The series of products have added special testing functions, including waveform display, grounding/floating ground, low-pass filtering, rapid discharge, residual voltage monitoring, and other special functions.

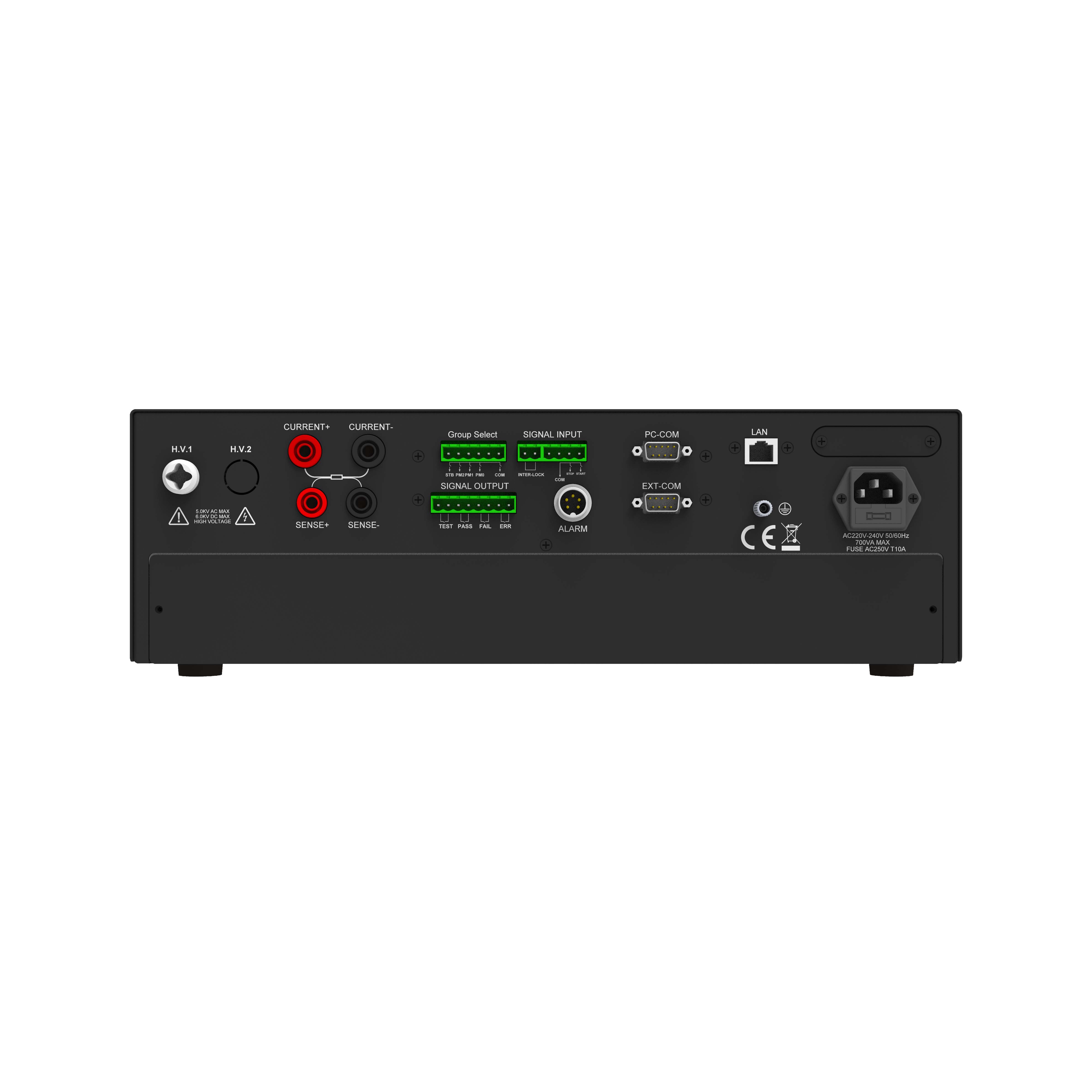

The series of products offer a wide range of measurement options, including AC withstand voltage 5KV/100mA, DC withstand voltage 6kV/20mA, insulation resistance 6KV/100GΩ, AC ground bond 64A/600mΩ, and DC ground bond 60A/600mΩ(rear panel plug-in card output), with multiple channel switching cards.

Features

Safe and reliable

Main drafting unit of state standards and verification regulations for safety testing products Nearly 30 years of safety testing expertise and follow-up of industry needs complete EMC, environmental,load, working conditions, and fatigue test verification.

Convenient and efficient

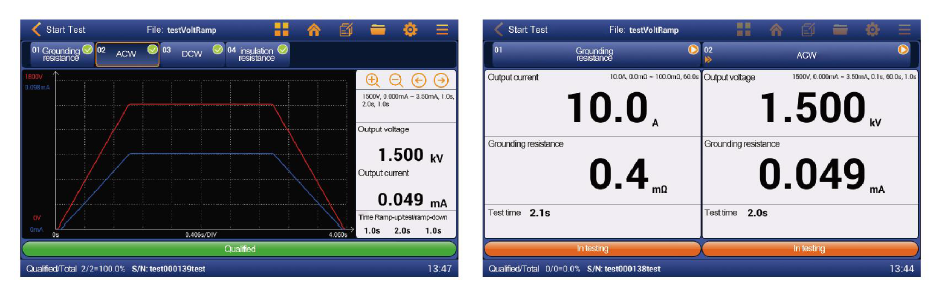

Waveform Display: parameter waveform display, supporting cursors, zoom, and playback

Auxiliary functions: Floating ground/grounding mode, low-pass filtering and residual voltage monitoring

Quick measurement and control: Quick test, quick switching and quick discharge

Intelligent test

Barcode Recognition: Barcode scanning, program matching, automatic startup, package

Data management: Local storage, network transmission, direct connection with MES system

Rich ports: RS232,LAN, WIFI, USB, PLC and I/O control interfaces

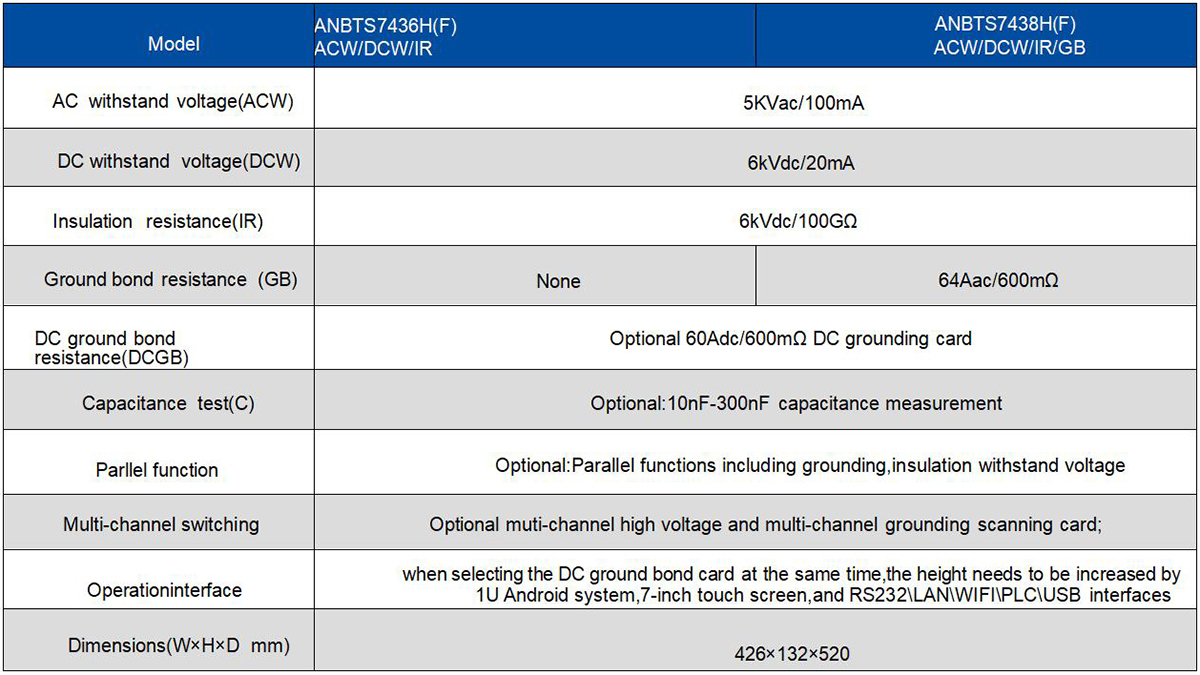

Specifications
