Intelligent and Integrated Driving - New Trends in Testing of Electric Control Systems for New Energy Vehicles

Industry background

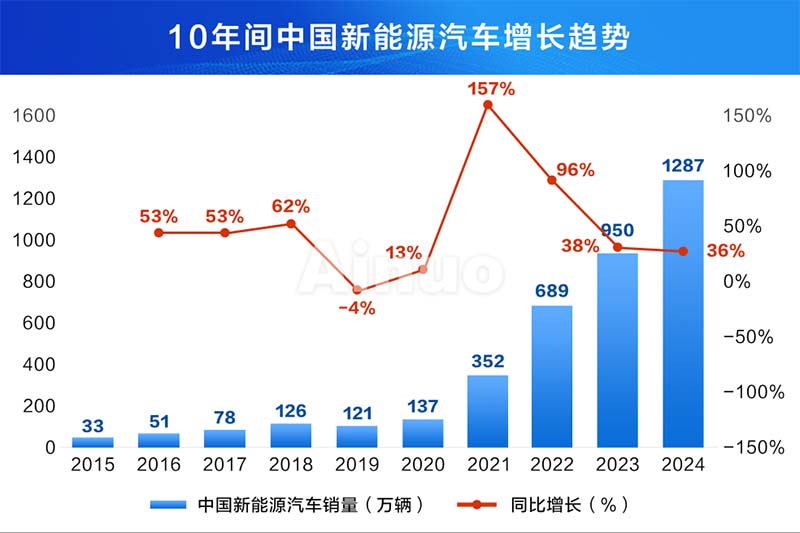

At present, China's new energy vehicle industry has entered a stage of sustained growth and large-scale development. According to authoritative statistical data, the new energy vehicle market in China will continue its steady growth trend in 2024, with annual sales of 12.87 million vehicles, a year-on-year increase of 36%, and a market penetration rate of 41%. The testing demand for high-power drive motors and supporting equipment such as electronic control systems, which are core components, has shown a significant growth trend.

Test pain points

·High precision and fast response: The test power supply meets the requirements of precise power supply and dynamic simulation.

·Powerful programmability and sequential functionality: It is necessary to simulate complex power supply timing and fault scenarios.

·Complete protection and isolation: protect the tested equipment and the testing equipment itself.

·Good communication interface: seamlessly integrated into automated testing systems (CAN, LAN, USB, GPIB, etc.).

Solution

To address the testing pain points mentioned above, Aino has launched the wide range programmable DC power supply AN53 series, which adopts active power factor correction technology and high-frequency LLC multi resonant soft switching inverter technology. This series has high power factor, fast dynamic response, low output ripple, and high power density. It has the characteristic performance of constant power wide range output, as well as the advantages of small size, light weight, low noise, high efficiency, and simple operation.

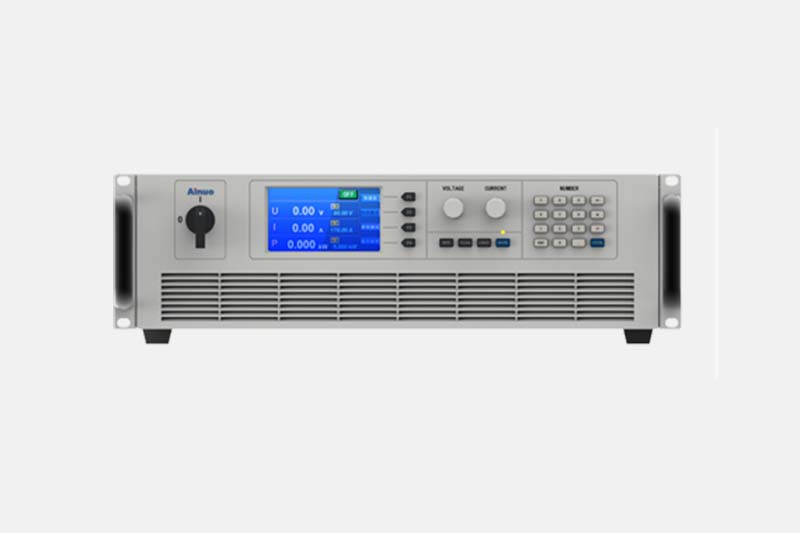

Product images

Product features and pain points to be addressed

·Programmable function: AN53 has powerful programming capabilities, which can provide precise and isolated power supply for different domain controllers and sensors simultaneously, simulate various voltage fluctuations, drops, interruptions, and other working conditions.

·Wide range output: The output range is expanded to three times that of the "matrix" power supply of the same power level;

·High precision: measurement error voltage ≤ 0.05Umax, resolution 0.01V

·Overvoltage protection: Input undervoltage protection, short circuit protection, reverse connection protection, output and overvoltage current limiting protection, S-terminal compensation function, ensuring the safety of the equipment and the tested product

·Communication functions: RS232/RS485/CAN/LAN/GPIB/USB analog ports, etc

conclusion

In the face of increasingly complex and intelligent automotive electronic control systems, flexible, precise, reliable, and easy to integrate programmable test power supplies have become an indispensable tool in the research and development verification and production testing processes. The wide range programmable DC power supply AN53 series produced by Aino has received unanimous praise from industry users for its high precision and reliability.
