The Role of Multi-Channel Power Analyzers in Renewable Energy & Smart Grids

The global energy landscape is undergoing a radical transformation. We are shifting from a centralized, predictable model of power generation to a decentralized, dynamic, and digitally interconnected network—the Smart Grid. At the heart of this revolution are renewable energy sources like solar and wind. However, integrating these variable and inverter-based resources presents unique engineering challenges. Ensuring stability, efficiency, and reliability requires precision measurement tools that can see the whole picture. This is where the multi-channel power analyzer steps into the spotlight, proving itself as an indispensable instrument for building the grid of the future.

From Simple Generation to Complex Integration

Traditional power systems rely on large, rotating generators that provide inherent grid stability. In contrast, renewables connect through power electronic converters (inverters). These devices are incredibly efficient but can introduce complexities like:

·         Harmonic Distortion: Inverters can generate high-frequency noise and harmonics that degrade power quality, overhear transformers, and disrupt sensitive equipment.

·         Variable Output: Solar and wind generation is intermittent, causing rapid fluctuations in voltage and frequency that the grid must absorb.

·         Bidirectional Power Flow: With the rise of vehicle-to-grid (V2G) technology and distributed storage, power can now flow from consumers back to the grid, complicating protection and load balancing.

To solve these challenges, we need more than a simple voltmeter. We need a tool that can capture a complete, synchronized, and accurate snapshot of complex power systems in real-time. Enter the multi-channel power analyzer.

Why Multi-Channel Power Analyzers are the Key Enabler

A multi-channel power analyzer is far more than several meters in one box. Its ability to measure multiple points in a system simultaneously and with precise time synchronization is what makes it critical for modern energy applications.

1. Testing Inverter and Converter Efficiency

The economic and environmental case for renewables hinges on efficiency. Inverters convert DC power from solar panels or batteries into grid-compliant AC power, but this process isn't 100% efficient.

·         The Multi-Channel Advantage: Engineers use multi-channel analyzers to measure input DC power and output AC power on all phases at the exact same moment. This allows for true, instantaneous efficiency calculation (η = P_out / P_in), even during rapid changes in irradiance or load. Identifying even a 0.5% efficiency gain across thousands of inverters translates to massive energy savings.

2. Ensuring Power Quality and Grid Compliance

Grid operators must maintain strict power quality standards (e.g., IEEE 1547). Before connecting a wind or solar farm to the grid, its power must be certified.

·         The Multi-Channel Advantage: These analyzers provide comprehensive power quality analysis across all phases simultaneously. They measure:

o    Voltage and Current Harmonics (THD): Pinpointing the source of harmonic pollution.

o    Flicker: Rapid voltage changes that can cause lights to dim.

o    Ride-Through Events: Verifying that the inverter remains connected during minor grid disturbances, as required by law.

3. Validating Energy Storage Systems (ESS) and V2G

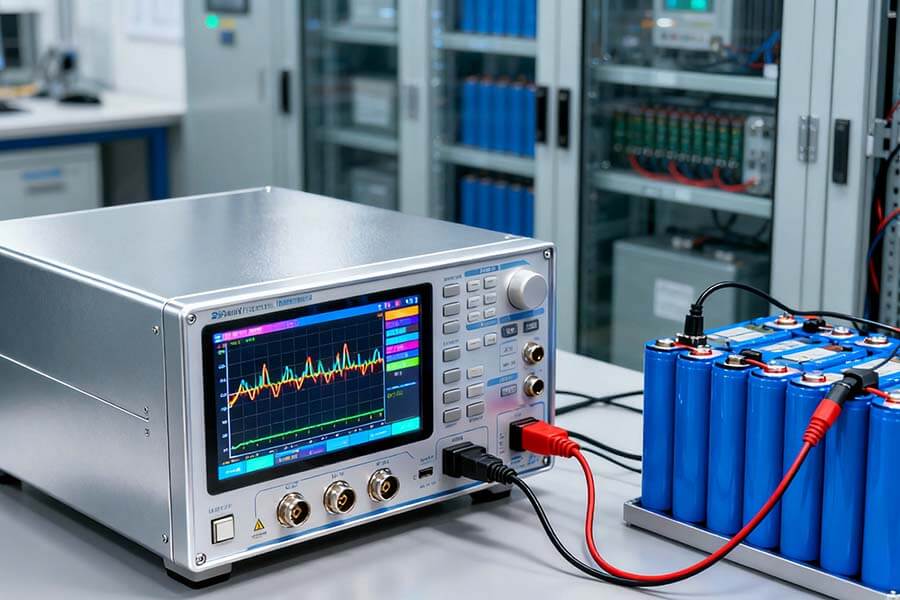

The missing link for renewable dominance is energy storage. Testing battery systems and V2G chargers involves measuring complex charge/discharge cycles and bidirectional power flow.

·         The Multi-Channel Advantage: A multi-channel analyzer can seamlessly measure power flowing into (charging) and out of (discharging) a system without reconfiguring probes. It provides crucial data on round-trip efficiency, peak shaving capability, and the precise impact of injecting power back into the grid from a fleet of electric vehicles.

4. Optimizing Smart Grid Infrastructure

The "smart" in smart grid comes from intelligent devices like phasor measurement units (PMUs), advanced sensors, and automated switches. Developing and deploying these devices requires validation under real-world conditions.

·         The Multi-Channel Advantage: Engineers use these analyzers to benchmark the performance of new grid hardware. By comparing data from multiple points—e.g., at a substation, a renewable source, and a major load—they can model grid behavior, validate stability algorithms, and ensure different components from various vendors work together harmoniously.

Key Features for Renewable Energy Applications

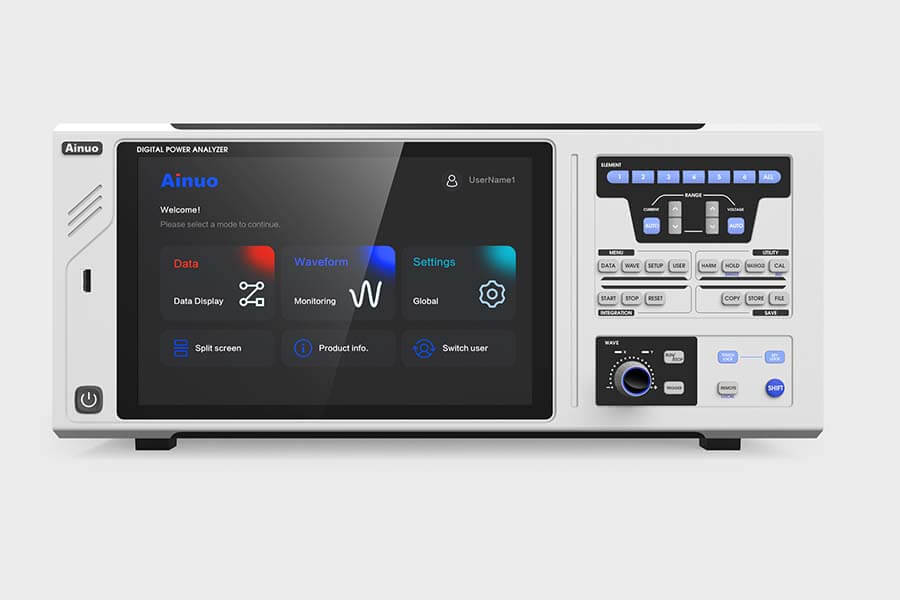

When selecting a power analyzer for this field, look for:

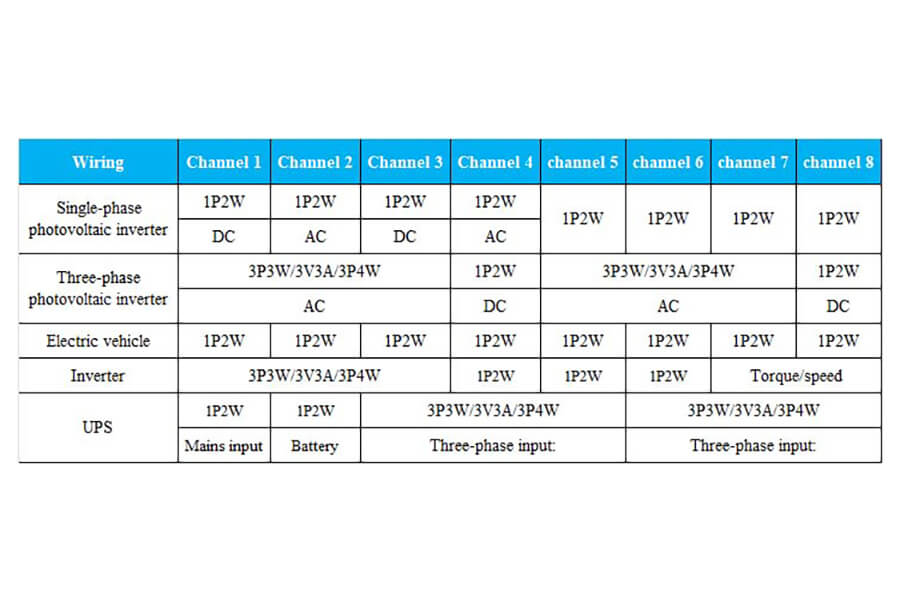

·         High Channel Count: At least 4 channels are needed for a 3-phase inverter (3x AC output, 1x DC input).

·         High Bandwidth and Sampling Rate: Essential for capturing switching transients and harmonics from high-speed inverters.

·         Synchronized Measurements: All channels must be perfectly aligned in time for accurate power calculations.

·         Advanced Software: Built-in computations for efficiency, harmonic analysis, and data logging are vital for processing the vast amounts of data generated.

·         Safety Ratings (CAT III / CAT IV): Non-negotiable for working with high-power electrical systems.

Powering the Future, Precisely

The transition to a renewable-powered future is not just about generating clean energy; it's about integrating it intelligently and reliably into a complex modern grid. Multi-channel power analyzers provide the critical data needed to drive innovation, ensure compliance, and maximize efficiency at every stage—from the R&D lab bench to the final grid connection. They are the unsung heroes, providing the clarity and precision engineers need to power our world sustainably.
